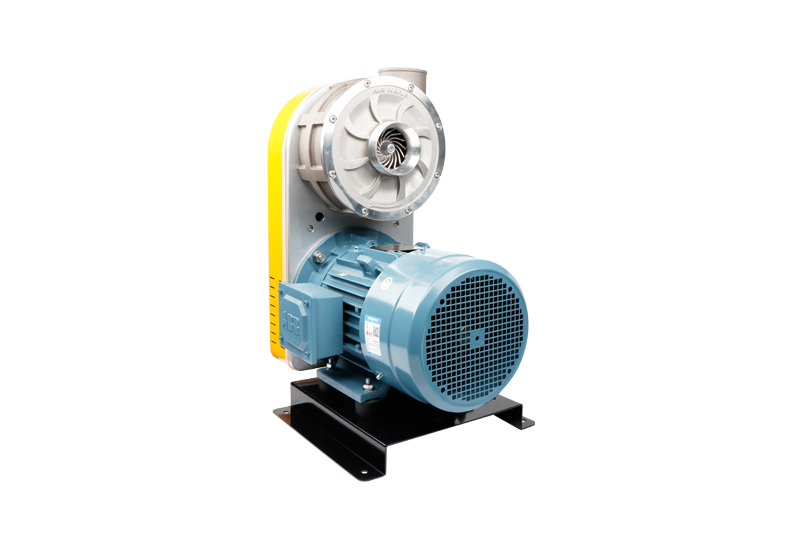

side channel blower / ring blower
The impellers in the G_series machines are mounted directly on the motor shaft for noncontact compression entirely without friction. Maximum operational reliability, even at high differential pressures. Is ensured by the arrangement of the bearings outside the compression chamber.
The gas it taken in through the inlet. As it enters the side channel, the rotating impeller. Imparts velocity to the gas in the direction of rotation. Centrifugal force in the imp eller blades accelerates the gas outward and the pressure increase. Every rotation adds kinetic energy. Resulting in the further increase of the pressure along the side channel. The side channel narrow at the rotor, sweeping the gas off the impeller blades and discharging it through the outlet silencer where it exits the side channel blower.
Features:
1. Beautiful surface
2. Easy installation
3. Low noise level
4. No vibration, and therefore complete dynamic stability
5. Pulsation-free discharge
6. Minimal maintenance
7. Higher pressure ratio
8. Cooler running bearings
9. Longer grease life
10. Simple maintenance
11. 100%oil-free air
12. Suitable for environmental protection
13. Small dimensions
14 continuous duty
