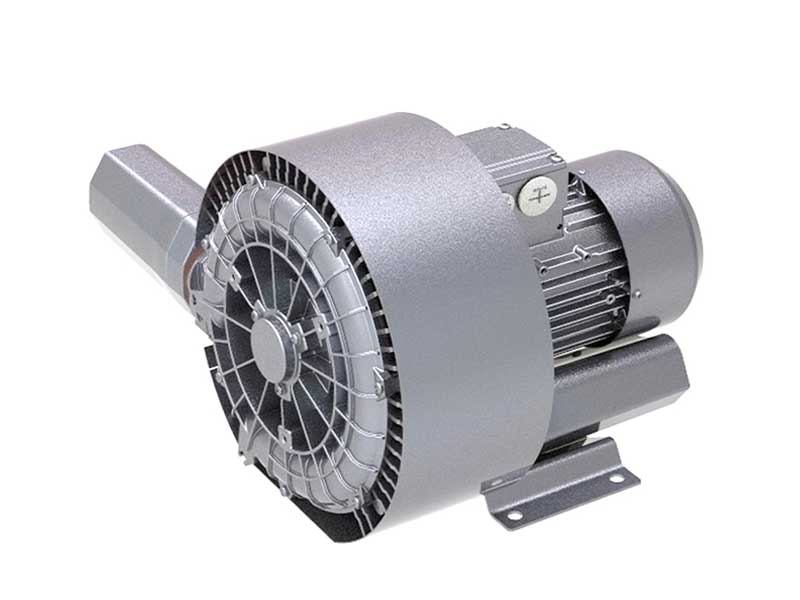

DHB 810C 004 IE3 high pressure blower for aquaculture

General features:
 ●Max Air flow to 2480m3/h;
 ●Rated vacuum to -730mbar;
 ●Rated pressure to 1040mbar;
 ●IE2/IE3 high efficiency is available;
 ●With Thermal protection (PTC);
 ●100% Oil free, Easy installation, Maintance free;
 ●CE, ROHS,UL,ATEX certification approvaled;
 ●Broadband frequency and voltage used worldwide;
 ●High quality bearing used to Anti-high temperature to 180℃-200℃;
Technical parameters units DHB 810C 004
Current Consumption m3/h 530/620
Power  mbar -200/-160
RPM mbar 200/160
Weight Hz 50/60
Noise  V 345-415△/600-720 | 380-480△/660-720
Current Consumption A 9.5△/5.5Y
Power  kW 4.0/4.6
RPM min-1 2800
Weight Kg 54
Noise  dB (A) 70/74

blower application
Packaging process
Fan Features


Dereike has 15 side channel blower production lines, with an average monthly output of 5W.
It adopts advanced production equipment such as CNC, laser machine, three coordinate detector, atomization tester and other detection equipment.
1. Professional:Excellent technical skills,and professional knowlege on products and applications;
2. In time :Respond quickly,in case of failure to repair,provide solutions within 24 hours;
3. Responsibility:Dereike promises 18 months free warranty time and a lifetime maintenance;
