In the realm of industrial, the Side Channel Blower stands as a silent powerhouse, driving various applications with efficiency and precision.
Understanding the intricacies of its production journey is crucial for those seeking insight into the manufacturing process.

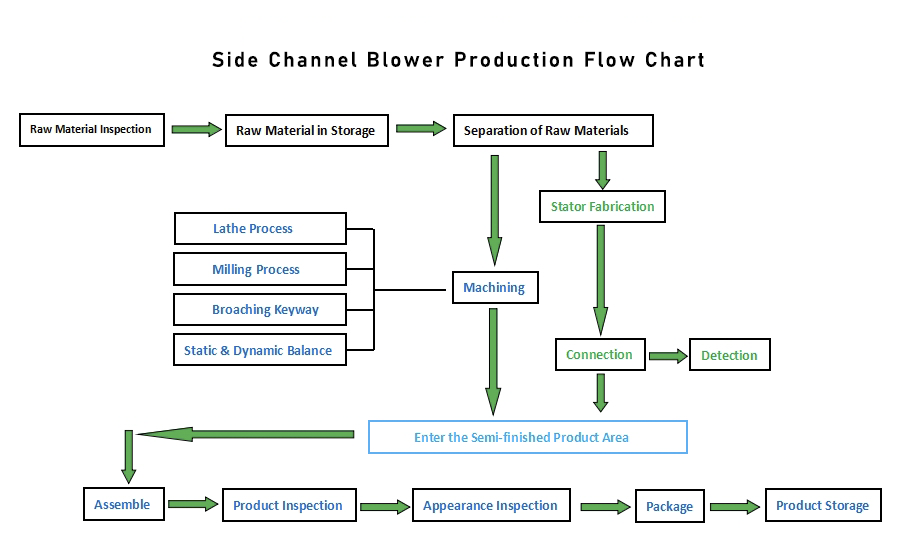

Here, we present a detailed exploration of the Side Channel Blower Production Flow Chart, shedding light on each stage with a focus on precision and craftsmanship.
At the outset of the production journey, the Raw Material Inspection emerges as a pivotal stage, akin to the meticulous scrutiny a sculptor applies to select the finest marble for a masterpiece.
Every raw material undergoes stringent examination, ensuring that only the highest quality components proceed to the next phase.

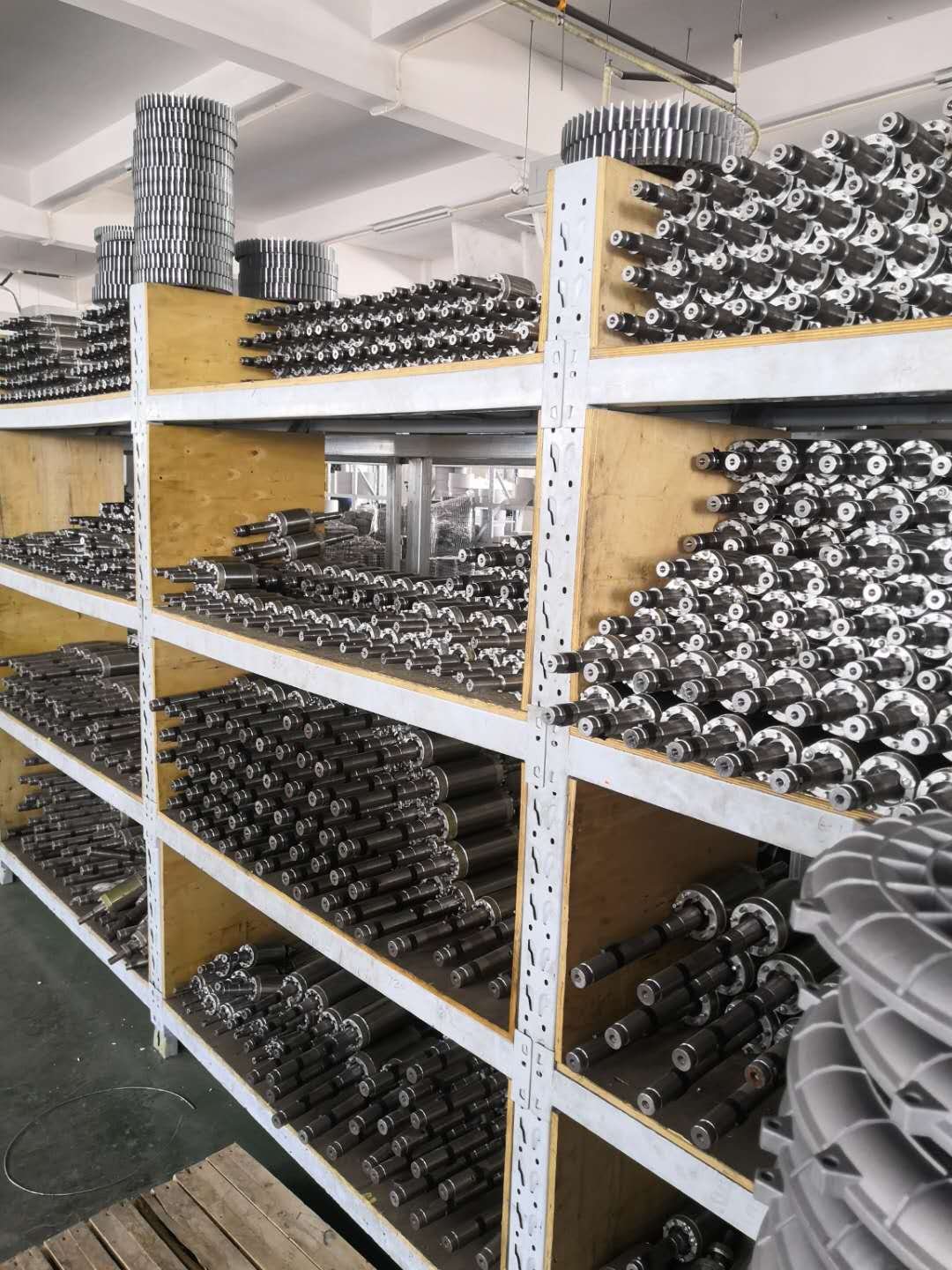

Upon passing inspection, approved raw materials find refuge in the warehouse—a general process in the production saga.
The Shelves become the temporary abode for these materials, organized with precision to maintain their pristine quality until summoned for the next phase.
The journey continues with the Crafting Components phase, where raw materials, having passed inspection and warehousing, undergo meticulous separation.
This step is a symphony of precision, orchestrating the birth of distinct components destined to play key roles in the final assembly.
The chapter explores the artistry involved in isolating materials, each contributing to the harmonious functioning of the Side Channel Blower.
As we progress through the production journey, the focus shifts to Stator Fabrication—the heartbeat of the Side Channel Blower. This stage involves crafting the core components that define the blower's performance.
Precision machining and expert craftsmanship intertwine to create stators that embody efficiency and durability.
The narrative unfolds further as we delve into the stage of Connection. Here, the stator components, having undergone fabrication, are intricately connected to form the semi-finished product. This crucial step involves precision and expertise, setting the stage for the grand assembly that follows.
The journey leads us into the realm of the Semi-Finished Product Area, a transitional space where connected components await their final transformation. This stage marks a critical juncture, setting the tone for the grand assembly that will bring the Side Channel Blower to life.

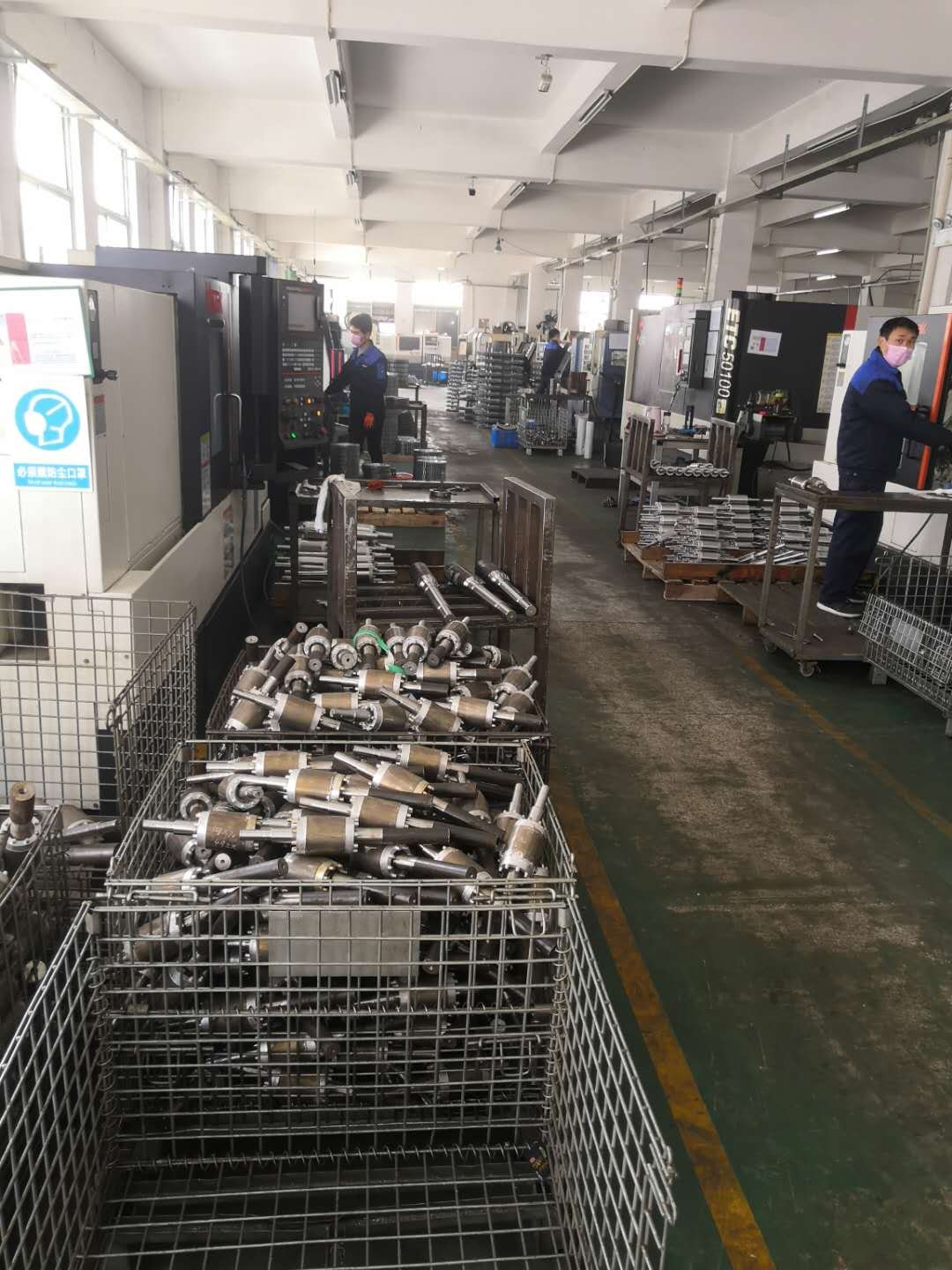

Within the realm of machining, the Lathe Process, Milling Process, Broaching Keyway, and Static & Dynamic Balance emerge as the four essential branches, each contributing its unique precision to the fabrication of components.
These processes elevate the Side Channel Blower's quality, ensuring that every element meets exacting standards.
As we approach the pinnacle of the production process, the spotlight turns to the Assembly phase. Here, various semi-finished components come together in a harmonious ballet, culminating in the creation of the final product. Precision and attention to detail characterize this grand finale.
Quality assurance takes center stage with the Product Inspection phase. Every aspect of the assembled product undergoes thorough scrutiny to ensure compliance with stringent standards. This stage acts as a safeguard, guaranteeing that only flawless Side Channel Blowers proceed to the next chapter.
Beyond functionality, the Side Channel Blower embraces aesthetic appeal. Appearance Inspection becomes a crucial chapter, evaluating the product's visual aspects and finishing touches. This stage ensures that the blower not only performs exceptionally but also presents an elegant facade.
The penultimate stage of Packaging transforms the inspected and approved products into a secure and presentable form for shipment. This phase involves meticulous attention to detail, ensuring that each Side Channel Blower reaches its destination in optimal condition.
The journey concludes in the Product Storage phase, where packaged products find their designated storage space. This sanctuary ensures that the Side Channel Blowers are ready to be deployed as needed, embodying the culmination of precision, craftsmanship, and quality assurance.
The Side Channel Blower Production Flow Chart is a testament to the fusion of precision and craftsmanship in the industrial realm. From the genesis of raw material inspection to the sanctuary of product storage, each stage reflects a commitment to excellence. The birth of the side channel blower has powered countless applications
