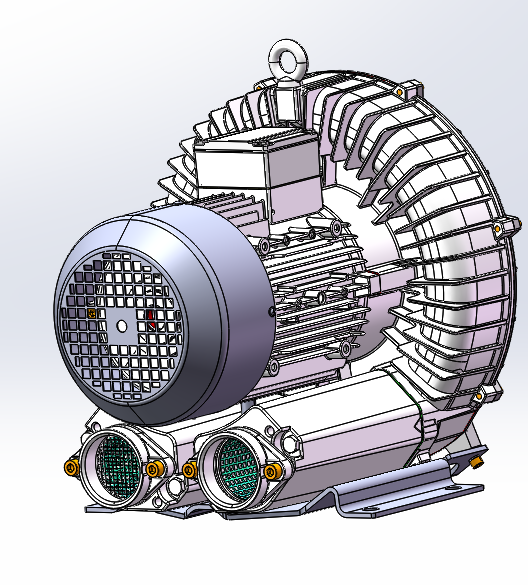

Side channel blower refers to the follower whose wind stress is 30kPa ~ 200KPa or compression proportion e= 1.3 ~ 3 under the layout conditions. The existing sector is usually the gas ring air pump classified as side channel blower. side channel blower, also called high pressure blower, is different from the general centrifugal blower.
Working principle:
When the impeller revolves, because of the activity of centrifugal pressure, the vane prompts the gas to move on and outward, thus developing a collection of spiral movements. The air in between the impeller blades revolves in a spiral form and squeezes the gas outside the pump body right into the side groove (breathed in by the suction port). When it goes into the side channel, the gas is compressed and after that returns to the impeller blades to speed up turning once more. As the air travels through the impeller and side grooves along a spiral track, each impeller plate enhances the level of compression and velocity. As the turning progresses, the kinetic energy of the gas boosts, further raising the pressure of the gas travelling through the side network. When the air reaches the connection point in between the side groove and also the discharge flange, the gas is squeezed out from the blade as well as released from the pump body with the outlet muffler.
How to clean up the side channel blower:
1. Loosen both screws at the end of the side channel blower.
2. After disassembly as well as setting up, you can see the motor, loosen the three fixed screws, find the combining head along the motor high-voltage line, open up the combining head, get rid of the plastic cover behind the air conditioning dust removal equipment of the side channel blower, you can take off the wind blade.
