General characteristics:
●Maximum air flow up to 2480 m3/h;
●Rated vacuum up to -730 mbar;
●Nominal pressure up to 1040 mbar;
●High efficiency IE2/IE3 available;
●With thermal protection (PTC);
●100% oil free, easy installation, maintenance free;
●Certification CE, ROHS, UL, ATEX;
●Broadband frequency and voltage used worldwide;
●High quality bearing used for high temperature protection up to 180℃-200℃;

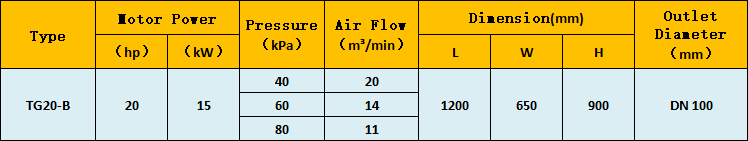

TG20-B Air Bearing Turbo Blower
Flow measurement conditions: 1atm; 20℃,60%RH
According to the actual situation error range: flow ±4%, power ±5%
Power input: three-phase 380V-440V, 50HZ/60HZ
Product Introduction
Maglev Turbo Blower harnesses the power of a high-speed permanent magnet synchronous motor, seamlessly integrating it with a centrifugal impeller for a holistic, direct-drive system. With its state-of-the-art displacement sensors, the system vigilantly tracks the rotor shaft's vibrations and clearances in real-time. And it's all precision monitoring. When stimulates the magnetic levitation bearing's coils, an electromagnetic force powerful enough to suspend the rotor shaft in air.
Features
1. Magnetic suspension bearing shaft
2. No contact, no hair wetting, no wear
3. Real-time monitoring of rotor bearing status to ensure safe operation
4. Auxiliary landing bearing, can active adjustment of rigidity/damping
5. There is no limit to the number of starts and stops used, which can prevent stall.
Core Technology
Applications
Thermal Power industry – Sewage Treatment – Chemical industry – Pringting & Dyeing industry – Steel industry – Cement industry – Textile – Papermaking industry – Food industry
Reference Comparison
Contrast Scheme
Roots Blower
Maglev Turbo Blower
Outlet Pressure (kPa)
80
80
Air Flow (m³/min)
71
71
Motor Power (kW)
132
90
Operating Power (kW)
128
90
Annual Electricity Consumption (Yuan)
1075200 (8400H/Y)
75600 (8400H/Y)
Annual Electricity Charge(Yuan)
860160 [0.8/(kW*H)]
604800 [0.8/(kW*H)]
Annual Maintain Charge(Yuan)
10000*2
2000*2
Annual Operate Expenses (Yuan)
880160
608800
Annual Saving (Yuan)
–
271360
Dereike has 15 side channel blower production lines, with an average monthly output of 5W.
It adopts advanced production equipment such as CNC, laser machine, three coordinate detector, atomization tester and other detection equipment.
1. Professional:Excellent technical skills,and professional knowlege on products and applications;
2. In time :Respond quickly,in case of failure to repair,provide solutions within 24 hours;
3. Responsibility:Dereike promises 18 months free warranty time and a lifetime maintenance;
