Working Principle of Dereike Air Blower

2020-04-09 15:26
Electroplating Aeration

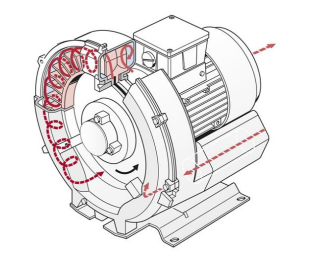

The working principle
The side channel blower in Electroplating, also known as aeration blower, is a kind of aeration equipment that releases tiny bubbles by compressed air in the aeration device arranged, and then carries on mass transfer with liquid
during the rising process of these bubbles, so that oxygen can be dissolved slowly into the liquid, so that articles can be electroplated perfectly;

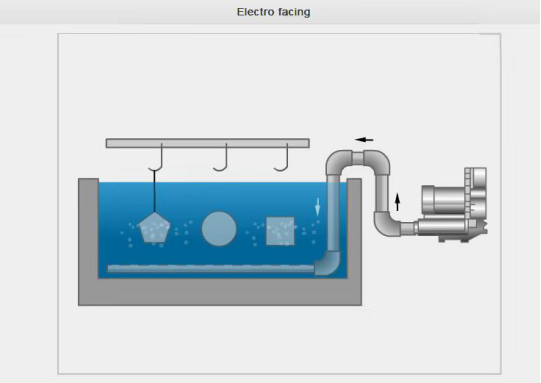

Application Demonstration



Electroplating Plant Hot- sale Blower Models:
DHB 510B 1D5 1.5KW; DHB710B 2D2 2.2KW; DHB710C 003 3KW; DHB710C 004 4KW;  DHB 810C 5D5 5.5KW;
Dereike Model Single Frequency Rated Voltage Rated Max Rated Rated Sound Weight
Double Output Current Airflow Vacuum Pressure
Stage Hz kW V A m3/h mbar mbar dB(A) Kg
DHB 510B 1D6 Single 50 1.6 200-240△345-415Y 7.5△/4.3Y 210 -200 190 64 23
60 2.05 220-275△380-480Y 7.6△/4.4Y 255 -220 210 70
DHB 710B 1D6 Single 50 1.6 200-240△345-415Y 8.5△/4.9Y 318 -160 150 69 26
60 2.05 220-275△380-480Y 8.8△/5.1Y 376 -160 150 72
DHB 710B 2D2 Single 50 2.2 200-240△345-415Y 9.7△/5.6Y 318 -190 190 69 29
60 2.55 220-275△380-480Y 10.0△/5.8Y 376 -190 190 72
DHB 710B 003 Single 50 3 200-240△345-415Y 12.5△/7.2Y 318 -260 270 69 34
60 3.45 220-275△380-480Y 12.5△/7.3Y 376 -240 230 72
DHB 710C 004 Single 50 4 345-415△600-720Y 9.5△/5.5Y 318 -290 360 69 42
60 4.6 380-480△660-720Y 9.5△/5.5Y 376 -320 310 72
DHB 810C 5D5 Single 50 5.5 345-415△600-690Y 12.9 △ /7.4Y 530 -300 300 70 63
60 6.3 380-480△660-720Y 12.9 △ /7.45Y 620 -300 280 74

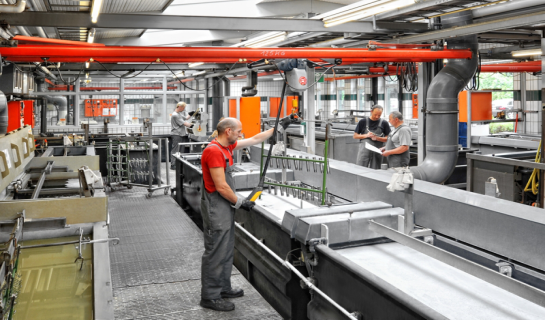

Application Picture


RFQ
(Please try to fill the questions below, so that we can analyze and select suitable model to you accordingly) :

*Area of electroplating processing pond:       m2
Or length    m* width   m *height    m

*Depth of pond water height      m

The height from Aeration pipe to the surface of the water      m

*The proportion of the Electroplating solution

Type of electroplate: □ coppering □ galvanizing □ nickeling
□ chroming □ gold-plating □ water scrubbing

*The total number of plating tank      piece;
Planed      sets blower for the application

The model of the old blower (Old Brand)

Requested pressure          KPa ;Requested airflow           m3/h

Installment Ambient:  □ Along the electroplating pool
□ In the shelter of the electroplating wire   □ Outside the room

Plating stirring performance requirements: □ Domestic standard
□ Taiwan Standard □ Foreign standard

Power & Voltage specification: □ single phase 220V
□ 3 phase 220V   □ 3 phase 380V □ others

Temperature of the air       to          ℃
Ambient temperature from        to         ℃

Spot altitude        m
