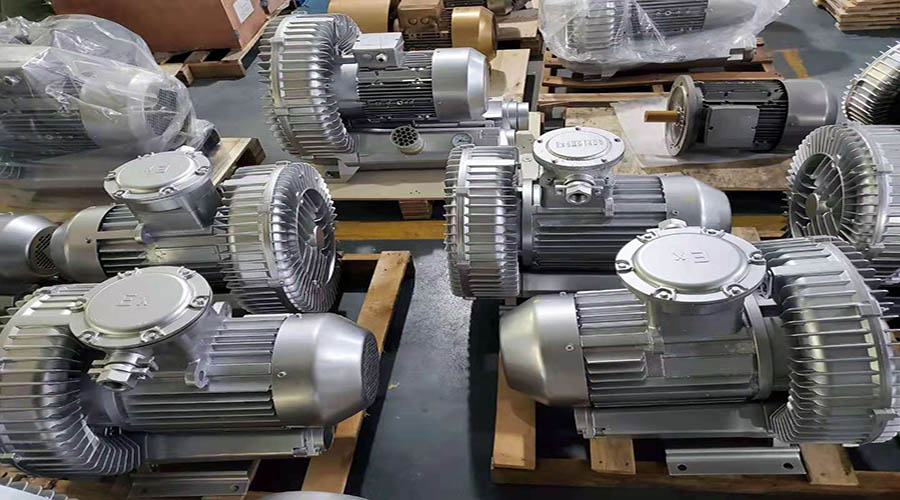

The relationship between various pressures of ring blower
2023-02-07 14:37
When picking high pressure fans, we frequently come across the three principles of static stress, vibrant pressure as well as complete stress. According to the expertise of liquid auto mechanics, the vertical force exerted by a liquid on a device area is called pressure. When the air moves along the internal wall of the air duct, its pressure can be separated right into fixed pressure, vibrant stress as well as overall pressure, and the device is mmHg or kg/m2 or Pa, the lawful unit in China is Pa
A. Fixed pressure (Pi).
The pressure triggered by the uneven movement of air particles striking the wall of the tube is called fixed pressure. When calculating, the fixed pressure with outright vacuum as the absolutely no point is called absolute static stress. Fixed stress with atmospheric pressure as zero is called relative fixed pressure. Air static stress in cooling refers to the relative fixed stress. Fixed pressure declares when it is above atmospheric pressure and also adverse when it is listed below atmospheric pressure.
B. Dynamic Pressure (Pb).
Describes the stress produced when the air streams. As long as the air moves in the air duct, there is a certain vibrant stress, and the worth is always positive.
C. Overall stress (Pq).
Complete stress is the algebraic sum of static and also dynamic stress: Pq= Pi ten Pb Total pressure stands for the total energy possessed by the lm3 gas. If the atmospheric pressure is the starting factor, it can be favorable or adverse.
The choice of residential fan is typically based upon the total pressure, while the option of international high-pressure follower is typically based on the boost pressure.
Dynamic pressure =0.5 * air density * wind rate ^ 2.
Recurring pressure = overall pressure - resistance of each tools in the system. As an example, the cooling unit contains: return air area, initial effect area, surface area cooling area, intermediate section, home heating area and blower area. The resistance of each functional section is: 20Pa, 80Pa, 120Pa, 20Pa, 100, 50Pa, the inner resistance is 290Pa, if the outside recurring stress is required to be 500Pa, the overall pressure of the rigid follower ought to not be less than 790Pa, if the external residual stress is needed to be 1100Pa, the total pressure of the rigid follower should not be less than 1390Pa, high recurring pressure is typically made use of for purifying systems. The dimension of the wind pressure is related to the option of electric motor power. Usually, recurring pressure must be based on the real requirements of the task. High recurring stress is not constantly an advantage.
Air conditioning units or fresh air units frequently mount the follower in the last, the wind speed of the fan electrical outlet is high, the dynamic pressure is high, the static pressure is tiny, the design is frequently installed at the electrical outlet of the static pressure box, decrease the vibrant pressure, boost the static stress, at the same time play the role of flow, noise decrease.
